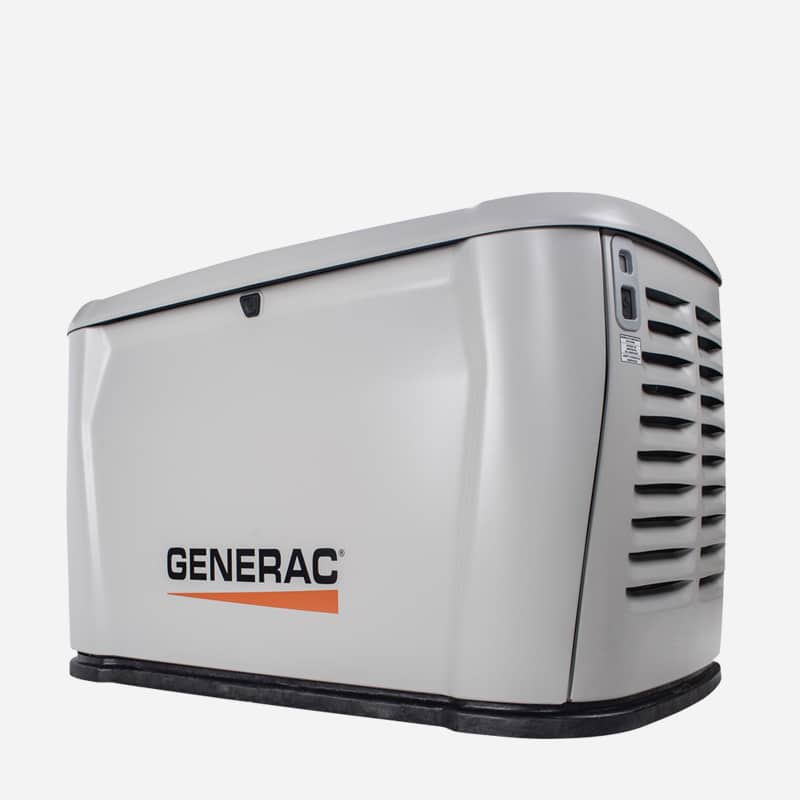

Generac 22 kW Home Standby Generator – G0072600

Name: Generac 22kW Home Standby Generator
SKU: PRG-10018-1
Price: 8800.00 CAD
Availability: InStock

Cellular/WiFi/BlueTooth

Model: G0072600

Spec Sheet

$8,800.00

0.0 /5

0 Customer Reviews

When the utility power fails, your home doesn’t have to. The Generac 22kW Home standby generator is a permanently installed backup power system that automatically detects an outage and restores power through a compatible automatic transfer switch helping keep essential circuits and comfort systems running (HVAC blowers, sump pumps, refrigeration, internet, lighting, and more).

This next-generation platform combines Generac’s purpose-built G-Force™ engine design, Power Zone™ 200 controller, and Mobile Link® connectivity (cellular standard, plus Wi-Fi and Bluetooth) for smart monitoring and dependable standby performance.

Free Quote

Free delivery available

Need Installation?

SKU PRG-10018-1 Categories Residental Generators, Generac, Generators

Generac 22kW Home Standby Generator

The Generac 22kW home standby generator delivers automatic backup power for larger homes and critical household systems. It offers clean, utility-quality power, remote monitoring, durable weather protection, and flexible natural gas or liquid propane operation.

Key Benefits

Automatic backup operation starts when utility power fails, with programmable delay settings.
Clean power output with True Power™ Electrical Technology and <5% THD for sensitive electronics.
Built for harsh weather with a sound-attenuated enclosure rated for winds up to 150 mph (241 km/h).
Flexible installation as close as 18 in (457 mm) to a structure when installed to code.
Remote monitoring through Mobile Link® for status, alerts, diagnostics, and service support.

What’s Included

Wi-Fi™, Bluetooth™, and standard cellular connectivity
Electronic fuel & ignition control (EFIC)
Hydraulic lifters
Smart Exercise Technology
Power Zone™ 200 controller
Electronic governor
Oil level sensor
LED status and maintenance indicators
Sound-attenuated enclosure
Natural gas or LP gas operation
5-year limited warranty

Bundle note: Bundled models include a 200A service-rated transfer switch. Select bundles may also include an ecobee by Generac Smart Thermostat, depending on configuration.

Output Ratings

Fuel Type	Rated Output
Liquid Propane (LP)	22 kW
Natural Gas (NG)	21 kW

Technical Specifications

Electrical

Rated voltage	240V
Phase	1
Frequency	60 Hz
Power factor	1.0
Rated max continuous load current @ 240V (LP / NG)	92A / 88A
Main line circuit breaker	100A
Total Harmonic Distortion (THD)	< 5%
Voltage regulation	±1%

Sound Levels

Normal load operation	67 dB(A)
Quiet-Test™ low-speed exercise mode	55 dB(A)

Sound readings are measured from the front of the generator. Actual sound levels may vary depending on installation conditions.

Dimensions & Weight

Dimensions (L × W × H)	46.4 × 26.3 × 30.7 in (117.9 × 66.8 × 77.9 cm)
Weight (without battery)	451 lb (205 kg)

Dimensions are approximate. Always follow the official installation manual for exact clearances and placement requirements.

Battery Requirement

Battery type	12V AGM Powersport Battery, Group BTX20L
Minimum starting capacity	310 CCA

Engine & Controller Highlights

Generac G-Force™ 1000 Series Engine

2-cylinder, 997 cc engine
Aluminum block with cast iron sleeve
OHV valve train with hydraulic lifters
Electronic governor for constant 60 Hz operation
Operating speed: 3,600 RPM
Oil capacity including filter: approx. 2.2 qt (2.1 L)
Low oil pressure and high temperature shutdown protection

Power Zone™ 200 Controller

AUTO / MANUAL / OFF / SERVICE modes with LED indicators
Utility voltage sensing with adjustable thresholds
Programmable start, warm-up, and cool-down delays
Weekly, bi-weekly, or monthly exercise scheduling
Adjustable exercise duration from 5–20 minutes
AGM-compatible battery charging and fault warnings
Protective shutdowns and event logging
Firmware updates via cellular or Wi-Fi where enabled

Fuel Type, Usage & Pressure

Fuel Type

Natural Gas (NG) or Liquid Propane (LP)

Fuel Consumption

Fuel	1/2 Load	Full Load
Natural Gas	221 ft³/hr (6.27 m³/hr)	311 ft³/hr (8.80 m³/hr)
Liquid Propane	89 ft³/hr (2.45 gal/hr / 9.28 L/hr)	135 ft³/hr (3.71 gal/hr / 14.03 L/hr)

Required Inlet Fuel Pressure

Natural Gas (NG)	3.5–7 in. water column (0.87–1.74 kPa)
Liquid Propane (LP)	10–12 in. water column (2.49–2.99 kPa)

Fuel piping must be properly sized for full-load operation and installed according to applicable code.

Installation Notes

14 in (35.6 cm) flexible fuel line connector included
Integral sediment trap
External emergency shutdown button on the enclosure

Transfer Switch Options

Unbundled

Best for projects where the generator will be paired with an existing transfer switch or a separately selected load management design.

Bundled System

Includes a 200A service-rated transfer switch with:

Fuse control module (FCM)
Integrated surge protection
Electrically operated, mechanically held contacts
Compatible with aluminum and copper conductors
NEMA/UL 3R aluminum outdoor enclosure
Transfer switch weight: 39.0 lb (17.7 kg)

Energy Management / Load Managers are sold separately when required for optimized startup load handling.

Model Numbers & UPCs

Configuration	Model	UPC
22 kW Generator (Unbundled)	G007260-0	696471103724
22 kW Generator + 200A Transfer Switch Bundle	G007325-0	696471104738

Finish: Aluminum enclosure in Metro Gray

Certification note: CETL certification applies to unbundled generator units. Units bundled with the transfer switch are ETL certified in the USA only. Always verify local code requirements for your jurisdiction and configuration.

Popular Add-Ons

AGM BTX20L Battery
Battery Heater
Oil Heater
Breather Heater

Scheduled maintenance kit
LTE LP tank fuel level monitor
50A / 100A Load Managers

Weight	420 lbs
Dimensions	48 × 25 × 29 in
Fuel Type	Liquid Propane or Natural Gas
Oil Type	Check chart in manual
Oil Capacity (qt)	2.2
Battery Included	No
Battery Type	Group 26R 540 CCA Minimum or Group 35AGM 650 CCA Minimum
Battery Size	12V
Engine Type	G-Force 800
Number of Cylinders	2
Mobile Link	Yes
Quiet Test	Yes
Controller Type	Evolution
Enclosure	Aluminum
Max. Cont. Power (LP)	18000 Watts
Max. Cont. Power (NG)	17000 Watts
Max. Cont. Amps - 240 volts (LP)	75
Max. Cont. Amps - 240 volts (NG)	70.8
Main Line Circuit Breaker (amp)	80
NG Consumption - 50% (m3/hr)	4.79
NG Consumption - 100% (m3/hr)	6.99
LP Consumption - 50% (l/hr)	6.45
LP Consumption - 100% (l/hr)	11.44
Sound Output in 7m - Normal Load	65 db
Sound Output in 7m - Quiet Test	55 db
