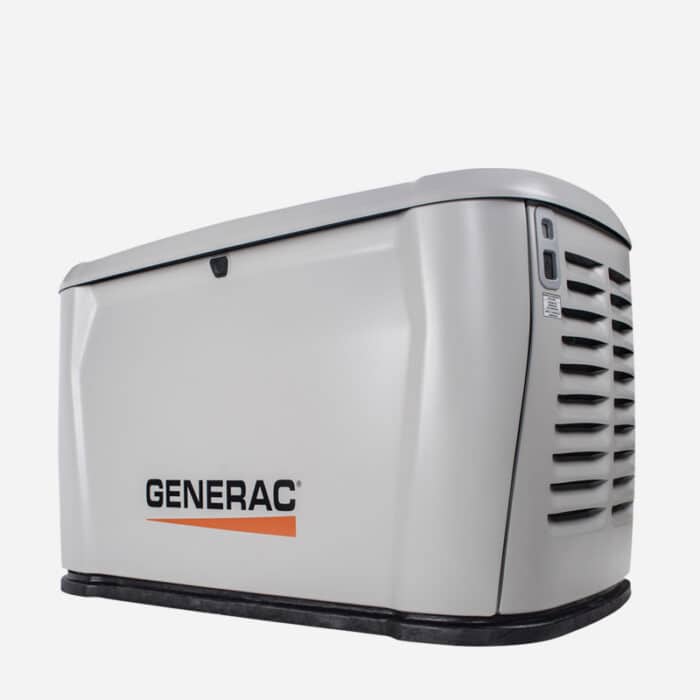

Generac 24kW Home Standby Generator – G0072610

What Generac 24kW Home Standby Generator Helps You Power

A properly sized Generac 24kW Home Standby Generator can support many of a home’s critical and high-demand circuits—often including:

• Heating equipment and fans, sump pumps, well pumps

• Refrigeration and freezers

• Lighting and receptacles throughout the home

• Home office and electronics

• Select HVAC systems and other motor loads (application dependent)

(Final coverage depends on your home’s electrical load and the installation design—especially for large HVAC and multiple motor loads.)

---

Key Features & Benefits

Automatic Backup Power—Without Lifting a Finger

• Automatically starts during an outage and supplies power through your transfer switch configuration.

• Built for standby use during utility outages.

Cleaner Power for Sensitive Electronics

• True Power™ Electrical Technology with less than 5% Total Harmonic Distortion (THD) helps provide utility-quality electricity for electronics and micro-chip based appliances.

Advanced Connectivity & Remote Monitoring

• Cellular connectivity is standard, with Wi-Fi™ and Bluetooth™ capabilities

• Monitor generator status, readiness, maintenance alerts, and more through compatible mobile applications.

• Installers/technicians use a dedicated mobile service app for setup and service functions.

Built for Reliability in Harsh Conditions

• G-Force™ 1000 Series engine is purpose-built for extended run times

• Hydraulic lifters for reduced maintenance

• Electronic fuel and ignition control (EFIC) and electronic governor

• Sound-attenuated enclosure designed to withstand winds up to 150 mph (241 km/h)

Smarter Exercise Function (Quieter, More Flexible)

• Quiet-Test™ low-speed exercise option

• Adjustable exercise duration: 5–20 minutes (5 minutes factory default)

Flexible Placement (Code/Installation Rules Still Apply)

• Listed for installation as close as 18 in (457 mm) from a structure (must still be located away from doors, windows, and fresh air intakes and installed to local code).

---

Model Options (24kW)

You may see this generator sold in two common configurations:

• Generac 24kW Home Standby Generator: G007261-0

• 24kW Bundle (with 200A service-rated transfer switch in bundled models): G007326-0

Certification note: CETL certification applies to unbundled generator units; bundled units are ETL certified in the USA only.

---

Fuel Consumption (24kW) + Fuel Pressure Requirements

Natural Gas (NG)

• ½ Load: 197 ft³/hr (5.58 m³/hr)

• Full Load: 291 ft³/hr (8.23 m³/hr)

Liquid Propane (LP vapor)

• ½ Load: 89 ft³/hr (2.45 m³/hr) = 2.45 gal/hr (9.28 L/hr)

• Full Load: 135 ft³/hr (3.71 gal/hr) [14.03 L/hr]

Important fuel notes

• Fuel pipe must be sized for full load.

• Required fuel inlet pressure at all load ranges:

  • NG: 3.5–7 in. water column (0.87–1.74 kPa)

  • LP: 10–12 in. water column (2.49–2.99 kPa)

• If converting from NG to LP, a minimum 250-gallon (946 L) LP tank is recommended.

---

Sound Levels

Measured at 23 ft (7 m) from the front of the generator:

• Normal load operation: 67 dB(A)

• Quiet-Test™ low-speed exercise: 55 dB(A)

(Sound from other sides may be higher depending on installation conditions.)

---

Electrical & Engine Specifications (24kW)

Generator Output

• Rated maximum continuous power (LP): 24 kW

• Rated maximum continuous power (NG): 22.5 kW

• Rated voltage: 240V

• Phase: 1-phase

• Frequency: 60 Hz

• Power factor: 1.0

• Rotor poles: 2

• Rated maximum continuous load current @ 240V (LP / NG): 100A / 94A

• Main line circuit breaker (generator disconnect): 110A

• Total Harmonic Distortion (THD): < 5%

Engine (G-Force 1000 Series)

• Cylinders: 2

• Displacement: 997 cc

• Cylinder block: Aluminum with cast iron sleeve

• Valve train: Overhead valve (OHV)

• Lifters: Hydraulic

• Ignition: Solid-state

• Governor: Electronic

• Compression ratio: 10.1:1

• Starter: 12 VDC

• Operating RPM: 3,600

• Oil capacity (incl. filter): Approx. 2.2 qt (2.1 L)

---

Battery Requirement (Not Included)

• 12V AGM Powersport Battery, Group BTX20L

• Minimum 310 CCA

---

Dimensions & Weight

• Enclosure: Aluminum (Metro Gray)

• Unit weight (without battery): 461 lb (209 kg)

• Dimensions (L × W × H): 46.4 × 26.3 × 30.7 in
  (117.9 × 66.8 × 77.9 cm)

---

What’s Included / Built-In Highlights

• Sound-attenuated, weather-protective enclosure

• Enclosed muffler (mounted inside unit)

• Main line circuit breaker (generator disconnect)

• Flexible fuel line connector and integral sediment trap (installation components referenced in the system design)

• Power Zone™ 200 Controller

• Oil level sensor

• LED system status & maintenance interval indicators

• Smart battery charger (integrated)

---

Warranty

• 5-Year limited warranty (generator and transfer switch)
