Key Features:
- Self-Aware and Autonomous:
The SMM operates independently, monitoring the frequency of power being produced. If the frequency falls below a specified threshold, the SMM will automatically shed managed loads, allowing the system to stabilize and recover.
- Load Priority Settings:
Configure load priorities from 1-8 or use the lock-out only mode for non-essential loads. This flexibility ensures that critical loads are prioritized, enhancing the overall system’s cost-effectiveness.
- Accurate Frequency Monitoring:
The SMM’s frequency-based operation does not factor in ambient temperatures, elevation changes, or fuel type, making it a precise and reliable tool for load management.
- Robust Construction:
Encased in a NEMA 3R enclosure, the SMM is built to endure challenging environments, ensuring lasting durability and dependability.
Specifications:
- Power Supply Source: 240 VAC (from Line input)
- Contact Voltages: 220/240 VAC
- Contactor Coil Voltage: 240 VAC
- Coil VA Inrush: 300
- Coil VA Sealed: 35
- Poles: 2
- Resistive Amps: 100
- Full Load Inductive Amps: 90
- Locked Rotor Amps: 540
- NEMA: 3R
- Enclosure Rating: UL 50
- Frequency Selectability: 50 Hz / 60 Hz
- Wire Gauge Range Box Lugs: 1/0 to 8 AWG
- Wire Material: Copper (Cu)
Control Features:
- Priority Dial: Sets module priority.
- Lockout Switch: Prevents load from operating when the system is operating under backup power.
- Test Button: Disables contactor output for a specified time.
- LED Indicator: Provides module status with easy viewing through the external window.

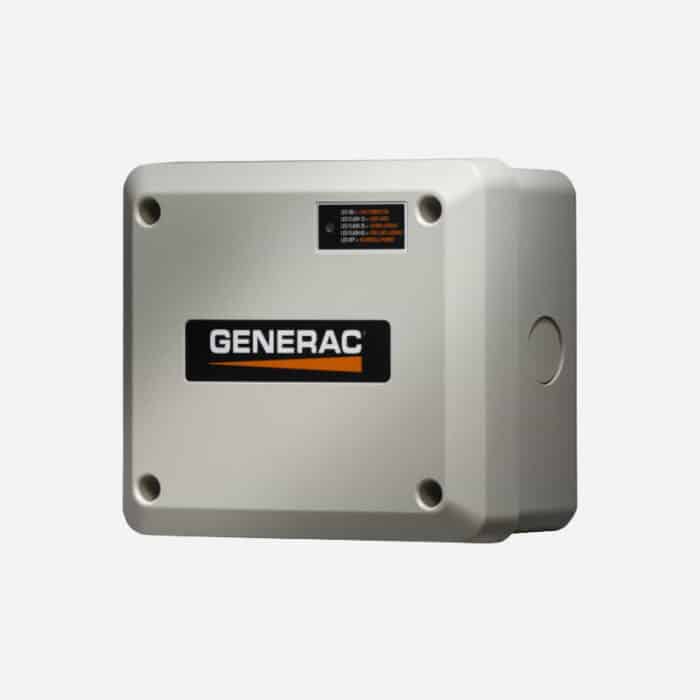

The Generac 100A Smart Management Module is an invaluable component for anyone looking to optimize their power system’s performance and efficiency. With its autonomous operation, load priority settings, and robust construction, it ensures reliable and efficient power management, making it an ideal choice for demanding environments and critical applications.
